50-sheet booklet making* with front trimmming and opinal creasing, slitting and spine corner forming
Perfect binding for books of up to 30 mm
100-sheet stapling with cutting mechanism
102-sheet auto ring binding
Automated inline business card and postcard cutting
Full bleed banners, A3 and A4 posters
AccurioPress C4080
Duty cycle: 2.5 Mil/2.2 Mil
Upto 140/120 A4 pages per minute
Upto 80/69 A3 pages per minute
Automated engine linearisation
Automated duplex registration
Automated profiling
Real-time adjustments
Purge function
S.E.A.D X 2,400 x 36,00 equiv. dpi x 8bit
Smitri V toner technology
Image density control technology
Up to 450 g/m2 paper weight in simplex and duplex printing
Long sheet size of up to 1,300mm (duplex up to 900mm)
Reliable thin paper feeding through air-blow fusing seperation
Envelop printing
Embossed paper support
Optional inter-cooler curl eliminator
AccurioPress C4080

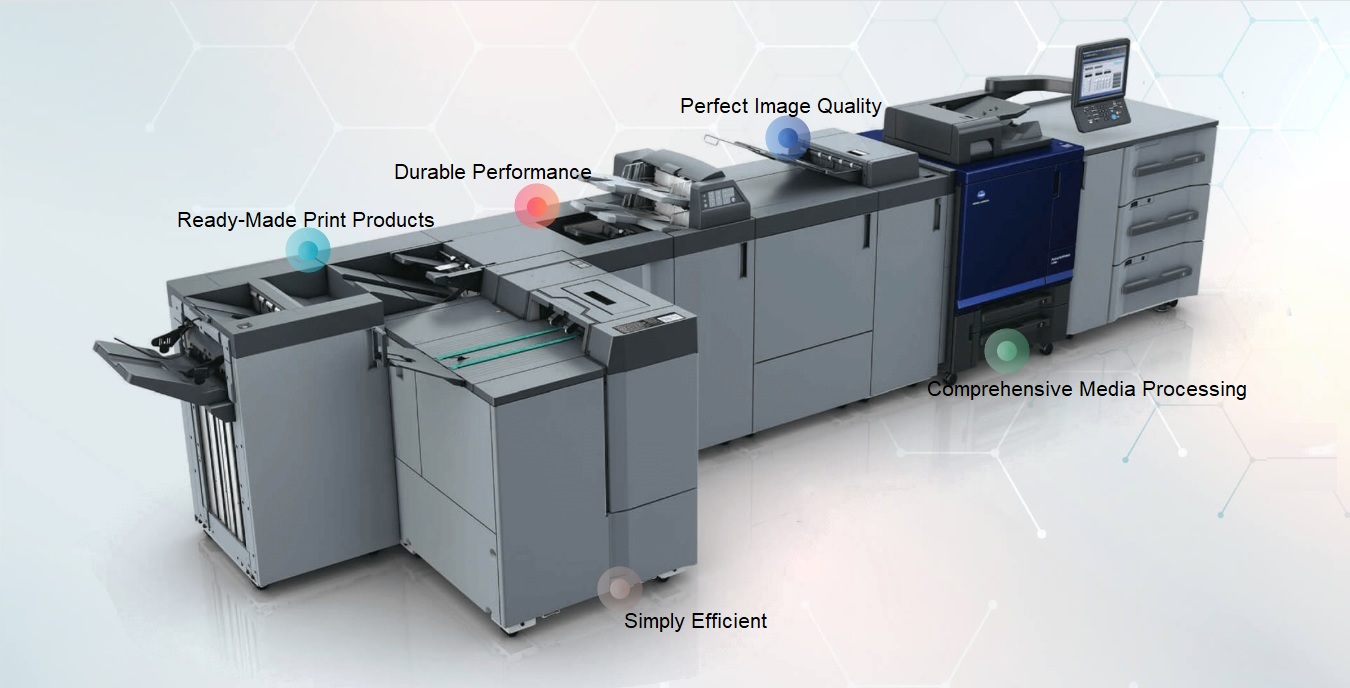

The AccurioPress C4080 digital press is an all-in-one print powerhouse, providing features to streamline workflow and print output, that will exceed customer expectations. A 71 ppm, the digital press offers the flexibility of 2-sided printing sheets up to 34” long with outstanding image quality. It is much more than a digital press-it is an opportunity to grow your business and bridge towards success.
Specifications
| Type | Console | ||
| Color availability | Color | ||
| Paper weight | 62 – 360 GSM | ||
| Paper sizes (max.) | 330.2 x 487.7 mm 330.2 x 864 mm (max.duplex) 330.2 x 1300 mm (max. simplex) |
||
| Paper input | Max: 15,390 sheets | ||
| Scanning resolution | 600 dpi x 600 dpi | ||
| Writing resolution | Equivalent to 3600 dpi x 2400 dpi | ||
| Copy Speed | A4 | -Simplex: 71 ppm | |
| A3 | -Simplex: 39 ppm | ||
| 217-360 g/m2 | 45 A4/26 A3 | ||
| Gradation | 256 | ||
| Standard Paper Tray Capacity | 1500 sheets A4 80 g/m2 | ||
| Magnification | 25 – 400%, in 0.1% steps | ||
| Memory size | 24GB (main body:8GB+ IC 609:16GB) | ||
| Warm-up Time | 390 seconds or less | ||
| First Copy/Printing Time (Color/Monochrome) |
6.1 seconds or less/ 4.0 seconds or less |
||
| Scan speed (A4) | Single-sided 140 opm*3 Duplex 280 opm*1 |
||
| Envelope Printing | Standard | ||
| Controller CPU-IC 609 | Intel Core i5-6500 3.2GHz*1 | ||
| Compatible Controllers | IC-609 (KM), IC-317 (EFI), IC-419 (EFI) | ||
| Main Unit Size(WxDxH mm) (Recommended) configuration |
84.65 x 35.55 x 58.19 inches (2,150 x 903 x 1478 mm) (main unit + DF-713 + LU-202m + FS 532+IC) |
||
| Duty Cycle | 7,58,000*2 | ||
| Average Monthly Print Volume (optimum volume) |
32.5K -130K | ||
| Unit weight | Approximate 312 kg | ||
| Architecture | Internal |
| OS | Linux |
| CPU | Intel Core i5 6500 |
| Clock Speed | 3.2 GHz |
| RAM Std | 16 GB |
| HDD | 1 TB x 2 |
| Page-description language | PostScript3 (PS PS3020); PDF Ver1.7; TIFF Ver6 compatible; PPML Ver2.2; APPE Ver4.6; PDF/VT ver2 |
| Applicable OS | Windows 8.1/10; Windows Server 2012/R2/2016/2019; Mac OS X 10.11–15 |
| Architecture | External |
| OS | Windows 10 |
| CPU | Intel Core i5-6500 |
| Clock Speed | 3.2 GHz |
| RAM Std | 8 GB |
| HDD | 1 TB |
| Page-description language | PostScript3 (CPSI 3020); PDF Ver1.7 ;PPML Ver3.0; APPE Ver5; PDF/VT 2; PCL(5, 6) emulation |
| Applicable OS | Windows 8.1/10; Windows Server 2012/R2/2016/2019; Mac OS X 10.11–15 |
| Architecture | Internal |
| OS | Linux |
| CPU | Intel Pentium G4400 |
| Clock Speed | 3.3 GHz |
| RAM Std | 8 GB |
| HDD | 500 GB |
| Page-description language | PostScript3 (CPSI 3020); PDF Ver1.7; APPE Ver5; PCL (5, 6) emulation |
| Applicable OS | Windows 8.1/10; Windows Server 2012/R2/2016/2019; Mac OS X 10.11–15 |
| KM Image Controller | IC-607 |
| EFI internal Controller | IC-419 |
| Paper Feeding Unit | PF-602m |
| Paper feeding unit | PF-707m |
| PFU connection Kit | FA-502 |
| Dehumidifier heater | HT-503 |
| Fusing unit for envelope printing | HT-511 |
| Large capacity feeding unit | LU-202m |
| Envelope printing guide for LU | MK-746 |
| Large capacity feeding unit (banner) | LU-202XLm |
| Multi bypass feeding | MB-508 |
| Banner Paper Feeder kit | MK-760 |
| Multi bypass tray | MB-509 |
| Intelligent Media Sensor | IM-101 |
| OutputTray | OT-511 |
| Stapling Unit | FS-532m |
| Saddle Stitcher Kit | SD-510 |
| Punch Kit | PK-525 |
| Post Inserter Kit | PI-502 |
| OutputTray Unit | OT-512 |
| Long Sheet Kit (Output) | MK-761 |
- All specifications refer to A4-size paper of 80 GSM quality.
- The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
- The stated life expectancy of each consumable is based on specific operating conditions such as page cover age for a particular page size (5% coverage of A4).The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
- Some of the product illustrations contain optional accessories.
- Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
- Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
- All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

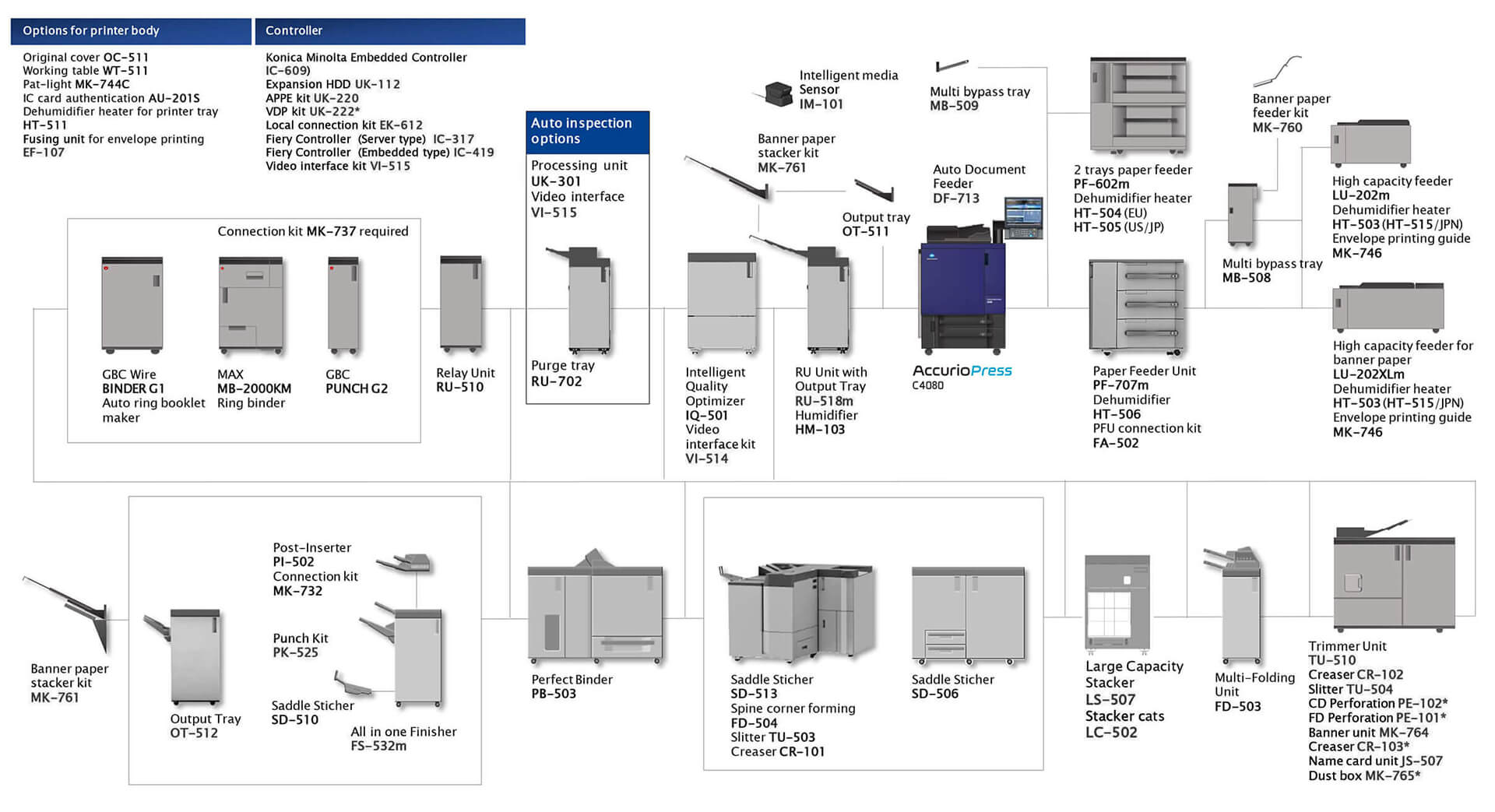

System Configuration
